Model UCL-WIHP200 Inset Attenuator 200 Watts DC-10GHz
![](/sysadmin/edit/UploadFile/200872217270262.bmp)

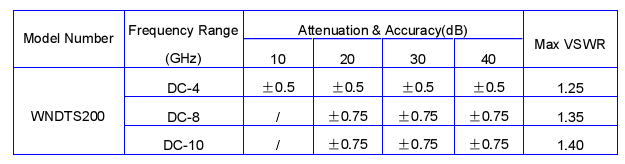

※ Inset attenuators are used in absorbing energy of transmission line, expanding power range and controlling power level, they are also used in accurately measuring power or spectrum of RF microwave transmitters accompany with small power meter, comprehensive tester or spectrum analyzer. WNDTS serial Inset attenuators' average power from 50W-200W, frequency range from DC-10GHz.
※ NOMINAL IMPEDANCE: 50Ω AVERAGE POWER: 200W average to 25°C ambient temperature, derated linearly to 20W @ 125°C. PEAK POWER: 5KW (5μs pulse width with 4% duty cycle) 3rd ORDER INTERMODULATION(Optional): Reflected Levels(IM3) <-100dBc with two input signals @935MHz and 960MHz with average carrier power levels of +43dBm each. TEMPERATURE RANGE: -55°C~+125°C CONNECTOR TYPE: N,SMA WEIGHT: 1.1Kg PHYSICAL DIMENSIONS: 234×50×32mm
